Clack WS3 Automatic Filter with Filter Sand, 24" x 72" (w/Comm. Pot)

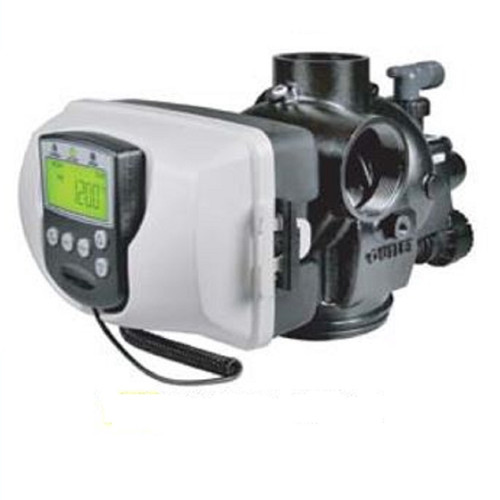

Systems feature the Clack WS3, 3" control valve with 9 fully adjustable cycles. Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency. Systems also include Filter Sand, commercial distributors, gravel bed and an 18x33 commercial potassium solution tank.

Product Features:

• 3" top mount or side mount control valve suited for commercial and industrial applications
• Lead free brass valve body
• Economical stainless steel optional meter assembly
• Service flow rate 250 gpm (946 lpm) (56.8 m3/h). Backwash flow rate 220 gpm (833 lpm) (50.0 m3/h)
• Solid state microprocessor with easy access front removable POD
• Front panel display for Time of Day, Current Flow Rate, Totalizer and Volume/Days until Regeneration
• Methods to initiate down flow regeneration; meter delayed, meter immediate, time clock delayed
• Fully programmable regeneration cycle times
• Pre or Post treated water regenerant refill
• Days override feature; 1-28 days available
• Capacitor back-up with up to 24 hour carry over
• 20-volt output AC adapter provides safe and easy installation
• Reliable and proven DC drive

Filter Sand

Sand filtration continues to make good sense: its cost-to-benefit ratio is very high, and effluent water quality is often very good. Sand systems can filter to a 10 micron level, yet they are simple in design and operation. River washed .44 to .55 mm sand with a high silica content, low impurities and a highly spherical shape for municipal, industrial and residential filter applications.

FILTER SAND is graded specifically for use at water filtration plants. It can be used in municipal, industrial or residential applications.

The highly spherical shape of UNCRUSHED GRAVEL promotes good flow and even distribution. Being low in soluble impurities, it will maintain the quality of the treated water, especially in softeners. Three inch layers are recommended in graded support beds.

Conditions for Operation (Filter Sand):
Bed Depth: 18 - 30 in.
Backwash Rate: 15 - 20 gpm./sq. ft.
Backwash Bed Expansion: 35% of bed depth
Service Flow Rate Municipal: 1.5 - 2 gpm/sq. ft.
Industrial: 3 gpm/sq. ft.
Domestic: 5 gpm/sq. ft.

Advantages:

• Highly-spherical shape and uniform grading provides reliable performance in this product with a long history of performance.
• Low soluble impurities prevent undesirable mineral leaching into process stream.
